Campingaz - Doppelabzweigventil
Doppelabzweigventil passend auf alle Regler, 2 absperrbare Abgänge, R 1/4'' Linksgewinde.
Hinweis: das gelieferte Produkt kann von der Abbildung abweichen.
Lieferumfang:
1x Doppelabzweigventil von Campingaz

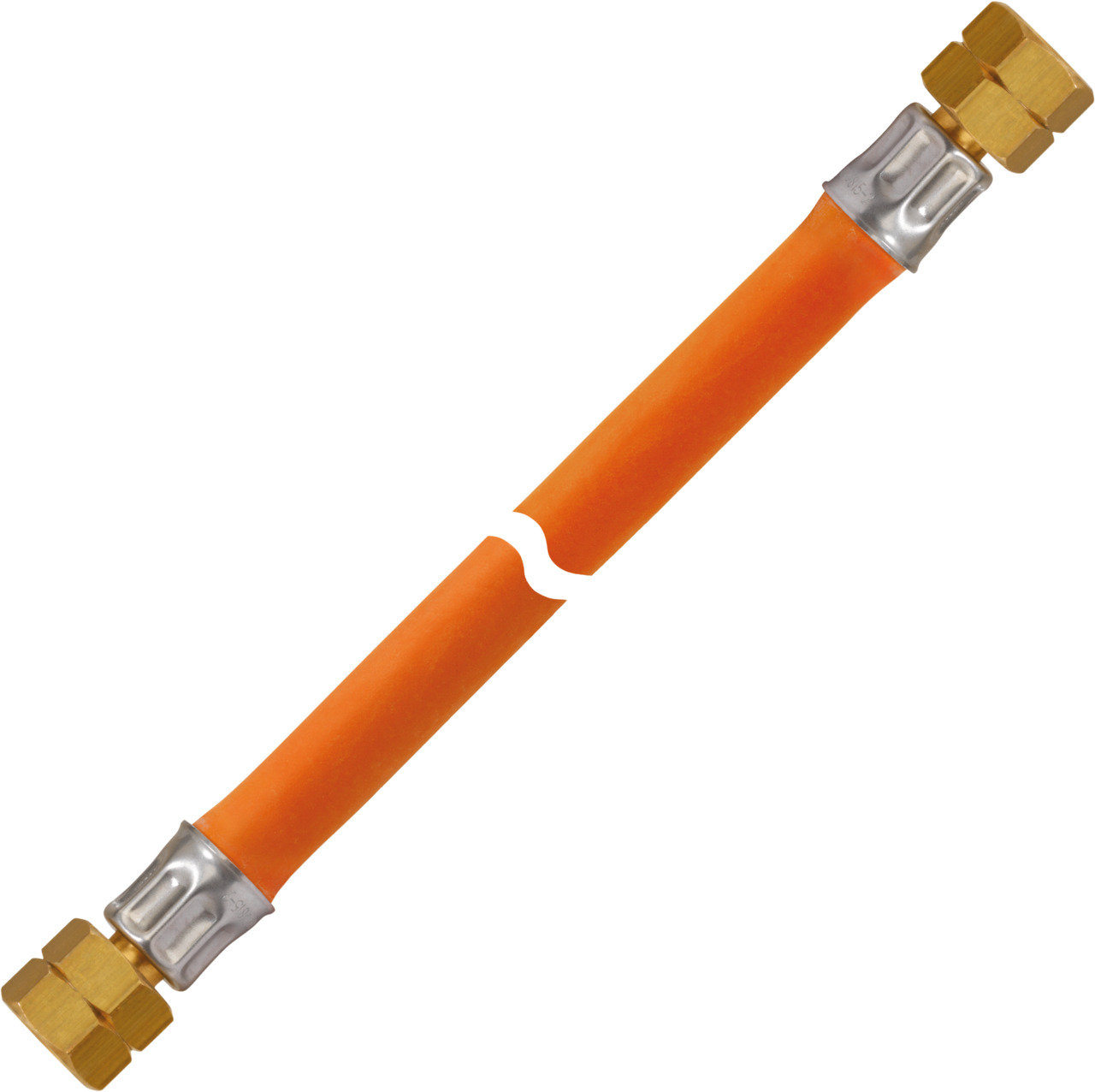

Campingaz - Mitteldruckschlauch 1500 mm
Für Propan/Butan, DIN-DVGW, beidseitig R 1/4'' links.
HINWEIS: Auf den Schläuchen ist das Herstellungsdatum aufgebracht. Schläuche müssen spätestens 10 Jahre nach Herstellung ausgetauscht werden.
Produktdetails:
- Länge: 1.500 mm
Lieferumfang:
1x Mitteldruckschlauch 1500 mm von Campingaz
Campingaz - Mitteldruckschlauch 3000 mm
Für Propan/Butan, DIN-DVGW, beidseitig R 1/4'' links.
HINWEIS: Auf den Schläuchen ist das Herstellungsdatum aufgebracht. Schläuche müssen spätestens 10 Jahre nach Herstellung ausgetauscht werden.
Produktdetails:
- Länge: 3.000 mm
Lieferumfang:
1x Mitteldruckschlauch 3000 mm von Campingaz

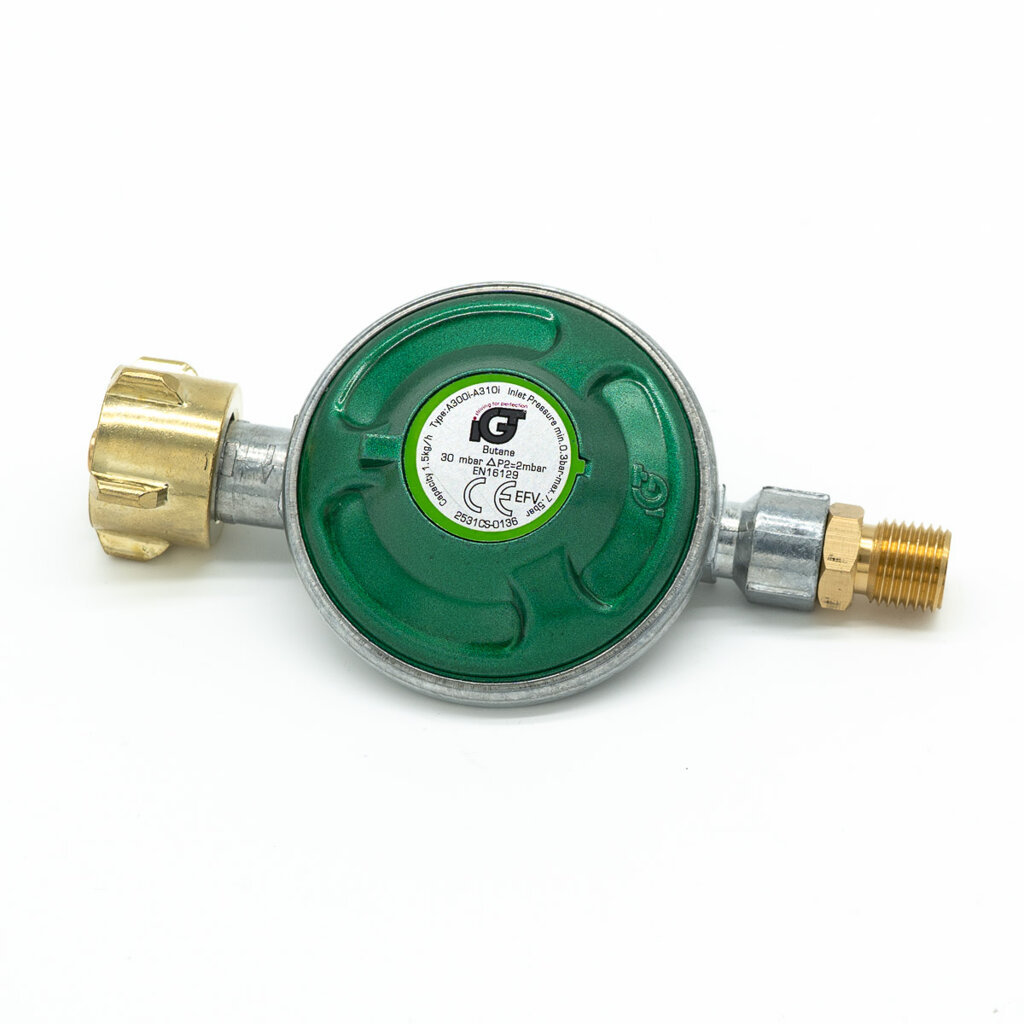

Campingaz - Regler 50 mBar mit Schlauchbruchsicherung
Absperrventil für Campingaz-Flaschen R 901, R 904 und R 907, 1 kg/h, mit R 1/4'' Linksgewinde für alle Schlauchgeräte.
Lieferumfang:
1x Regler 50 mBar mit Schlauchbruchsicherung von Campingaz
Für Propan/Butan, DIN-DVGW, beidseitig R 1/4'' links.
HINWEIS: Auf den Schläuchen ist das Herstellungsdatum aufgebracht. Schläuche müssen spätestens 10 Jahre nach Herstellung ausgetauscht werden.Länge: 800 mm
Campingaz - Sicherheits-Flaschenventil
Bauartzugelassen, zum Anschluss von Campingaz-Butangasflaschen R 901/904/907 an Propangasregler.
Lieferumfang:
1x Sicherheits-Flaschenventil von Campingaz
CFH - Anschlussventil AV121
Artikelnummer: No. 52121
- Das Anschlussventil eignet sich für die Gasentnahme aus allen Propangasdosen mit einem 7/16“ UNEF-Anschlussgewinde nach EN 417 für schlauchgebundene Lötgeräte mit 3/8 Zoll Linksgewinde Anschluss
- Hier können Sie z.B. folgende CFH Artikel miteinander verbinden: Die Universaldruckgasdose AT 2000 CFH-Art. Nr. 52107 und die Universaldruckgasdose AT 7500 CFH-Art. Nr. 52104 können mit dem Handlötgerät PZ 2000 CFH-Art. Nr. 52065 oder mit den Kupferlötkolben KL143 CFH-Art. Nr. 52143 und dem KL 147 CFH-Art. Nr. 52147 verbunden werden
Details:
- für herkömmliche Propan-Butan Druckgasdosen
- mit Entnahmeventil nach DIN EN 417
- Ausgang H.6 3/8“ gemäß EN 16129
- für Propangasflaschenlötgeräte mit Gasschlauch 3/8“ lks
Lieferumfang:
1x Anschlussventil AV121 von CFH
CFH Imagefilm
Video will open in a new window
Using the eBay App? Paste link into a browser window:
[isdntekvideo]
.ytvideo * { box-sizing:border-box; } .ytvideo { margin:.5em auto 40px auto; max-width:480px; font-family:arial; text-align:center; position:relative; min-height:120px; background-color:#555; } .ytvideo p { position:absolute; margin:0; color:white; background-color:rgba(0,0,0,.5); } .ytvideo .yt_hd { font-size:16px; width:100%; height:28px; padding-top:6px; text-align:left; top:0; left:0; padding-left:10px; overflow:hidden; } .ytvideo .yt_ft { font-size:12px; width:100%; bottom:0; left:0; } .ytvideo img { display:block; max-width:100%; border:0; } .ytvideo a:after { content:"\A0\25BA"; position:absolute; width:60px; height:40px; left:0; top:0; right:0; bottom:0; margin:auto; border:0; border-radius:10px; color:white; background:rgba(0,0,0,.6); font-size:24px; padding-top:11px; cursor:pointer; } .ytvideo a:hover:after { background:#CC181E; } .ytvideo .yt_inp { position:absolute; top:100%; left:0; width:100%; text-align:center; padding:.5em .2em; border:0; color:white; background: rgba(0,0,0,.7); } @media(max-device-width:960px){ .ytvideo { margin-bottom:60px; } .ytvideo .yt_inp { padding:1em .2em; } }
CFH - Blechschere Links Schneidend BS760
Artikelnummer: No. 51760
- Die links schneidendende Blechschere Schneidet dünne Bleche aus Aluminium, Zinn, Metall und bis zu 0,45 mm dicken Stahl
- Die Schere mit großer Hebelwirkung und den speziellen Scherenblättern für effizientes Schneiden ist aus hochwertigem Chrom-Vanadium-Stahl hergestellt
- Die Blechschere verfügt über selbstöffnende Schenkel
- Sie ist geeignet zum Schneiden von Radien (Linksschneidend)
- Der zweifarbige ergonomische Handgriff mit gummiertem Abgleitschutz sorgt für sicheren Halt und präzise Schnitte
- Die Verriegelung schließt das Werkzeug, wenn es nicht verwendet wird, um Sie und das Scherenblatt zu schützen
Details:
- für Bleche bis Stärke 0,45 mm
- ergonomische Handgriffe mit Abgleitschutz
- Schneiden von Radien
- selbstöffnende Schenkel
Lieferumfang:
1x Blechschere Links Schneidend BS760 von CFH
CFH Imagefilm
Video will open in a new window
Using the eBay App? Paste link into a browser window:
[isdntekvideo]
.ytvideo * { box-sizing:border-box; } .ytvideo { margin:.5em auto 40px auto; max-width:480px; font-family:arial; text-align:center; position:relative; min-height:120px; background-color:#555; } .ytvideo p { position:absolute; margin:0; color:white; background-color:rgba(0,0,0,.5); } .ytvideo .yt_hd { font-size:16px; width:100%; height:28px; padding-top:6px; text-align:left; top:0; left:0; padding-left:10px; overflow:hidden; } .ytvideo .yt_ft { font-size:12px; width:100%; bottom:0; left:0; } .ytvideo img { display:block; max-width:100%; border:0; } .ytvideo a:after { content:"\A0\25BA"; position:absolute; width:60px; height:40px; left:0; top:0; right:0; bottom:0; margin:auto; border:0; border-radius:10px; color:white; background:rgba(0,0,0,.6); font-size:24px; padding-top:11px; cursor:pointer; } .ytvideo a:hover:after { background:#CC181E; } .ytvideo .yt_inp { position:absolute; top:100%; left:0; width:100%; text-align:center; padding:.5em .2em; border:0; color:white; background: rgba(0,0,0,.7); } @media(max-device-width:960px){ .ytvideo { margin-bottom:60px; } .ytvideo .yt_inp { padding:1em .2em; } }
CFH Niederdruckregler // Druckregler 50 mbar (No. 52117/428) // Zweistufiger Druckregler (No. 52414)
Video will open in a new window
Using the eBay App? Paste link into a browser window:
[isdntekvideo]
.ytvideo * { box-sizing:border-box; } .ytvideo { margin:.5em auto 40px auto; max-width:480px; font-family:arial; text-align:center; position:relative; min-height:120px; background-color:#555; } .ytvideo p { position:absolute; margin:0; color:white; background-color:rgba(0,0,0,.5); } .ytvideo .yt_hd { font-size:16px; width:100%; height:28px; padding-top:6px; text-align:left; top:0; left:0; padding-left:10px; overflow:hidden; } .ytvideo .yt_ft { font-size:12px; width:100%; bottom:0; left:0; } .ytvideo img { display:block; max-width:100%; border:0; } .ytvideo a:after { content:"\A0\25BA"; position:absolute; width:60px; height:40px; left:0; top:0; right:0; bottom:0; margin:auto; border:0; border-radius:10px; color:white; background:rgba(0,0,0,.6); font-size:24px; padding-top:11px; cursor:pointer; } .ytvideo a:hover:after { background:#CC181E; } .ytvideo .yt_inp { position:absolute; top:100%; left:0; width:100%; text-align:center; padding:.5em .2em; border:0; color:white; background: rgba(0,0,0,.7); } @media(max-device-width:960px){ .ytvideo { margin-bottom:60px; } .ytvideo .yt_inp { padding:1em .2em; } }
CFH - Druckregler mit Füllstandsanzeige DRF428
Artikelnummer: No. 52428
- Das Druckregelgerät mit Schlauchbruchsicherung und Füllstandsanzeige für Flüssiggas stoppt das weitere Ausströmen von Gas bei einem Schlauchbruch
- Der Druckregler ist geeignet für Gasgrills und Campingkocher
- Er darf nicht an Caravans und Motorcaravans angebracht werden
- Man kann Ihn an Flaschen bis zu 11 kg mit einem Anschluss von 1/4 Zoll LH (Linksgewinde) anbringen
- Eingangsdruck: 50 mbar
- Durchfluss: 1,5 kg/h
- Anschluss: 1/4 Zoll LH (Linksgewinde)
- Norm: EN 16129
- Der Druckregler ist CE geprüft
- Der aktuelle Gasfüllstand kann abgelesen werden, wenn die Füllstandsanzeige folgende Farben anzeigt: Blau: Die Gasflasche ist leer, kein Flüssiggas mehr enthalten. Gelb: Erster Hinweis: Die Gasfüllmenge ist gering, ausreichend noch für maximal 1-2 Stunde Betriebszeit (je nach eingestellter Leistung des Gerätes). Grün: Ausreichende Gasfüllmenge für die Verwendung von mehr als 2 Stunden
Details:
- Einstufiger Niederdruckregler mit Manometer und EFV-Strömungswächter (Excess Flow Valve). Der EFV Strömungswächter (Excess Flow Valve) ist eine Sicherheitseinrichtung die beispielsweise bei zu niederem Druck (einer Leckage/bei Schlauchbruch) die Gaszufuhr automatisch abschaltet.
- der aktuelle Gasfüllstand kann abgelesen werden
- Durchfluss 1,5 kg/h
- Ausgang 1/4" Linksgewinde
- Ausgangsdruck 50 mbar
- Stoppt bei Schlauchbruch weiteres Ausströmen von Gas
- Nur im Freien verwenden.
Verwendung des Manometers zum Beurteilen des Füllstandes in der Gasflasche:
Das Manometer zeigt den vorhandenen Restdruck in der Gasflasche an. Daraus lässt sich der Füllstand der Gasflasche abschätzen. Beachten Sie bitte, dass der Druck in erster Linie nicht von der Menge, sondern auch von der Temperatur des Gases abhängt.
Zur Einschätzung des Gasfüllstandes lesen Sie die Anzeige wie folgt:
Grün: Ausreichende Gasfüllmenge für die Verwendung von mehr als 2 Stunden.
Gelb: Erster Hinweis - die Gasfüllmenge ist gering, ausreichend noch für maximal 1-2 Stunden Betriebszeit (je nach eingestellter Leistung des Gerätes).
Rot: Die Gasflasche ist leer, kein Flüssiggas mehr enthalten.
Lieferumfang:
1x Druckregler mit Füllstandsanzeige DRF428 von CFH
CFH Imagefilm
Video will open in a new window
Using the eBay App? Paste link into a browser window:
[isdntekvideo]
.ytvideo * { box-sizing:border-box; } .ytvideo { margin:.5em auto 40px auto; max-width:480px; font-family:arial; text-align:center; position:relative; min-height:120px; background-color:#555; } .ytvideo p { position:absolute; margin:0; color:white; background-color:rgba(0,0,0,.5); } .ytvideo .yt_hd { font-size:16px; width:100%; height:28px; padding-top:6px; text-align:left; top:0; left:0; padding-left:10px; overflow:hidden; } .ytvideo .yt_ft { font-size:12px; width:100%; bottom:0; left:0; } .ytvideo img { display:block; max-width:100%; border:0; } .ytvideo a:after { content:"\A0\25BA"; position:absolute; width:60px; height:40px; left:0; top:0; right:0; bottom:0; margin:auto; border:0; border-radius:10px; color:white; background:rgba(0,0,0,.6); font-size:24px; padding-top:11px; cursor:pointer; } .ytvideo a:hover:after { background:#CC181E; } .ytvideo .yt_inp { position:absolute; top:100%; left:0; width:100%; text-align:center; padding:.5em .2em; border:0; color:white; background: rgba(0,0,0,.7); } @media(max-device-width:960px){ .ytvideo { margin-bottom:60px; } .ytvideo .yt_inp { padding:1em .2em; } }
CFH - Druckregler mit Strömungswächter und Füllstandsanzeige DRF404
Artikelnummer: No. 52404
Details:
- Einstufiger Niederdruckregler mit Manometer und EFV-Strömungswächter (Excess Flow Valve). Der EFV Strömungswächter (Excess Flow Valve) ist eine Sicherheitseinrichtung die beispielsweise bei zu niederem Druck (einer Leckage/bei Schlauchbruch) die Gaszufuhr automatisch abschaltet.
- der aktuelle Gasfüllstand kann abgelesen werden
- Durchfluss 1,5 kg/h
- Ausgang 1/4" Linksgewinde
- Ausgangsdruck 50 mbar
- Stoppt bei Schlauchbruch weiteres Ausströmen von Gas
- Nur im Freien verwenden.
Verwendung des Manometers zum Beurteilen des Füllstandes in der Gasflasche:
Das Manometer zeigt den vorhandenen Restdruck in der Gasflasche an. Daraus lässt sich der Füllstand der Gasflasche abschätzen. Beachten Sie bitte, dass der Druck in erster Linie nicht von der Menge, sondern auch von der Temperatur des Gases abhängt.
Zur Einschätzung des Gasfüllstandes lesen Sie die Anzeige wie folgt:
Grün: Ausreichende Gasfüllmenge für die Verwendung von mehr als 2 Stunden.
Gelb: Erster Hinweis - die Gasfüllmenge ist gering, ausreichend noch für maximal 1-2 Stunden Betriebszeit (je nach eingestellter Leistung des Gerätes).
Blau: Die Gasflasche ist leer, kein Flüssiggas mehr enthalten.
Lieferumfang:
1x Druckregler mit Strömungswächter und Füllstandsanzeige DRF404 von CFH
CFH Imagefilm
Video will open in a new window
Using the eBay App? Paste link into a browser window:
[isdntekvideo]
.ytvideo * { box-sizing:border-box; } .ytvideo { margin:.5em auto 40px auto; max-width:480px; font-family:arial; text-align:center; position:relative; min-height:120px; background-color:#555; } .ytvideo p { position:absolute; margin:0; color:white; background-color:rgba(0,0,0,.5); } .ytvideo .yt_hd { font-size:16px; width:100%; height:28px; padding-top:6px; text-align:left; top:0; left:0; padding-left:10px; overflow:hidden; } .ytvideo .yt_ft { font-size:12px; width:100%; bottom:0; left:0; } .ytvideo img { display:block; max-width:100%; border:0; } .ytvideo a:after { content:"\A0\25BA"; position:absolute; width:60px; height:40px; left:0; top:0; right:0; bottom:0; margin:auto; border:0; border-radius:10px; color:white; background:rgba(0,0,0,.6); font-size:24px; padding-top:11px; cursor:pointer; } .ytvideo a:hover:after { background:#CC181E; } .ytvideo .yt_inp { position:absolute; top:100%; left:0; width:100%; text-align:center; padding:.5em .2em; border:0; color:white; background: rgba(0,0,0,.7); } @media(max-device-width:960px){ .ytvideo { margin-bottom:60px; } .ytvideo .yt_inp { padding:1em .2em; } }
CFH - Druckregler Set
Artikelnummer: No. 49404
Details:
- Der Druckregler ist für Flüssiggas geeignet. Er regelt den Eingangsdruck (Flaschendruck) für Ihren Gasgrill
- In dem Set enthalten sind: 1x Druckregler inkl. drehbarem Manometer und EFV (Excess Flow Valve); 1x Gasschlauch 80cm ¼“ links beidseitig; 1x Gasflaschenschlüssel
- Mittels Gasdruckregler und Gasschlauch kann das Verbrauchsgerät (z.B. der Gasgrill) direkt an die handelsübliche 5- und 11-kg Propangasflasche angeschlossen werden. Der mitgelieferte Gasflaschenschlüssel ist ein erstklassiger Helfer beim gasdichten Anschluss des Druckreglers an die Propangasflasche. Das Set hat einen Anschluss von ¼ Zoll LH (Linksgewinde), und hat einen Nenndurchfluss von 1,5 kg/h mit einem Ausgangsdruck von 50 mbar. Er hat eine CE-Zulassung nach EN 16129.
- Der Integrierte EFV Strömungswächter (Excess Flow Valve) ist eine Sicherheitseinrichtung die beispielsweise bei zu niederem Druck (einer Leckage des Schlauches oder bei einem Schlauchbruch) die Gaszufuhr automatisch abschaltet umso Ihre Sicherheit zu gewährleisten.
- Mit dem 360° drehbaren Manometer ist das Ablesen des Flaschendrucks ganz einfach, hier können Sie auch die Dichtigkeit überprüfen und durch die integrierte Farbskale können Sie den aktuellen Füllstand Ihrer Gasflasche ablesen.
Lieferumfang:
1x Druckregler Set von CFH
CFH Imagefilm
Video will open in a new window
Using the eBay App? Paste link into a browser window:
[isdntekvideo]
.ytvideo * { box-sizing:border-box; } .ytvideo { margin:.5em auto 40px auto; max-width:480px; font-family:arial; text-align:center; position:relative; min-height:120px; background-color:#555; } .ytvideo p { position:absolute; margin:0; color:white; background-color:rgba(0,0,0,.5); } .ytvideo .yt_hd { font-size:16px; width:100%; height:28px; padding-top:6px; text-align:left; top:0; left:0; padding-left:10px; overflow:hidden; } .ytvideo .yt_ft { font-size:12px; width:100%; bottom:0; left:0; } .ytvideo img { display:block; max-width:100%; border:0; } .ytvideo a:after { content:"\A0\25BA"; position:absolute; width:60px; height:40px; left:0; top:0; right:0; bottom:0; margin:auto; border:0; border-radius:10px; color:white; background:rgba(0,0,0,.6); font-size:24px; padding-top:11px; cursor:pointer; } .ytvideo a:hover:after { background:#CC181E; } .ytvideo .yt_inp { position:absolute; top:100%; left:0; width:100%; text-align:center; padding:.5em .2em; border:0; color:white; background: rgba(0,0,0,.7); } @media(max-device-width:960px){ .ytvideo { margin-bottom:60px; } .ytvideo .yt_inp { padding:1em .2em; } }
CFH - Gasschlauch 2m VS200
Artikelnummer: No. 52450
- Der Gasschlauch ist für Gasgrillgeräte, Camping- und Hockerkocher sowie Outdooröfen mit einem Betriebsdruck bis 50 mbar geeignet
- Mit einem geeigneten Druckregler kann der Gasschlauch an handelsüblichen Gasflaschen mit einem max. Ausgangsdruck von 16 bar nach DIN DVGW angeschlossen werden
- Der Schlauch hat eine Länge von 200 cm mit einem beidseitigen Anschluss von ¼ Zoll LH (Linksgewinde) konisch dichtend
- Es ist verwendbar z.B. am Hockerkocher CFH Art. Nr. 52418 oder Zweiflammkocher CFH Art. Nr. 52421
- Der Gasschlauch ist nicht geeignet für: Schweißen, Brennschneiden und verwandte Verfahren
- Betriebstemperaturbereich: -30°C bis + 70°C
Details:
- Propan/Butan Ersatz- und Verlängerungsschlauch
- 1/4“ lks
- für Gasgrillgeräte, Campingkocher usw.
Lieferumfang:
1x Gasschlauch 2m VS200 von CFH
CFH Imagefilm
Video will open in a new window
Using the eBay App? Paste link into a browser window:
[isdntekvideo]
.ytvideo * { box-sizing:border-box; } .ytvideo { margin:.5em auto 40px auto; max-width:480px; font-family:arial; text-align:center; position:relative; min-height:120px; background-color:#555; } .ytvideo p { position:absolute; margin:0; color:white; background-color:rgba(0,0,0,.5); } .ytvideo .yt_hd { font-size:16px; width:100%; height:28px; padding-top:6px; text-align:left; top:0; left:0; padding-left:10px; overflow:hidden; } .ytvideo .yt_ft { font-size:12px; width:100%; bottom:0; left:0; } .ytvideo img { display:block; max-width:100%; border:0; } .ytvideo a:after { content:"\A0\25BA"; position:absolute; width:60px; height:40px; left:0; top:0; right:0; bottom:0; margin:auto; border:0; border-radius:10px; color:white; background:rgba(0,0,0,.6); font-size:24px; padding-top:11px; cursor:pointer; } .ytvideo a:hover:after { background:#CC181E; } .ytvideo .yt_inp { position:absolute; top:100%; left:0; width:100%; text-align:center; padding:.5em .2em; border:0; color:white; background: rgba(0,0,0,.7); } @media(max-device-width:960px){ .ytvideo { margin-bottom:60px; } .ytvideo .yt_inp { padding:1em .2em; } }
CFH - Propanregler Regelbar mit Manometer 1-4 Bar DR115
Artikelnummer: No. 52115
- Der PROPANEREGLER DR 115 ist ein Druckminderer für Flüssiggas mit einstellbarem Ausgangsdruck.
- Der PROPANREGLER DR 115 ist in erster Linie für handgeführte Kleingeräte (zB: CFH-Flamm-Flammgeräte und CFH-Schlauchlötgeräte) geeignet.
- Der Ausgangsdruck ist stufenlos einstellbar von 1-4 bar. Dadurch kann der Arbeitsdruck optimal an das Arbeitsgerät angepasst werden, um bei Bedarf die Leistung zu minimieren oder zu erhöhen.
- Der eingestellte Steuerdruck (Ausgangsdruck) kann am Manometer abgelesen werden.
- Die Dichtheit des Gasanschlusses kann auch mit Hilfe des Manometers überprüft werden.
- Der PROPANREGLER DR 115 ist zum Anschluss an 5 KG, 11 KG und 33 KG Propangasflaschen geeignet. Nur im Freien verwenden.
- Anschlussart Eingangsseite: G.5 nach EN 16129 Dieser PROPANREGLER DR 115 ist nicht für den Einsatz an Gasgrills, Heizstrahlern, in Wohnwagen und Reisemobilen bestimmt!
- Passend für Gasschläuche mit Kugelzapfenanschluss mit Überwurfmutter G 3/8“ links (für Anschluss H.6 nach EN 16129).
- Ausgangsdruck: 1 - 4 bar einstellbar Durchfluss: 6-10 kg/h Beachten Sie die Bedienungsanleitung des Verbrauchers.
- Zulässiger Umgebungstemperaturbereich: -20°C bis +50°C DVGW/CE 0085
Details:
- mit Manometer stufenlos regelbar
- Eingang - G.5 / Ausgang - H.6 3/8“ gemäß EN 16129, Durchfluss 6-10 kg/
- ideal für Anwärmbrenner und Abflammgeräte
- Nur im Freien verwenden.
Lieferumfang:
1x Propanregler Regelbar mit Manometer 1-4 Bar DR115 von CFH
CFH Hochdruckregler // Propandruckregler 2,5 bar (No. 52112/114) // 1-4 bar (No.52113/115)
Video will open in a new window
Using the eBay App? Paste link into a browser window:
[isdntekvideo]
.ytvideo * { box-sizing:border-box; } .ytvideo { margin:.5em auto 40px auto; max-width:480px; font-family:arial; text-align:center; position:relative; min-height:120px; background-color:#555; } .ytvideo p { position:absolute; margin:0; color:white; background-color:rgba(0,0,0,.5); } .ytvideo .yt_hd { font-size:16px; width:100%; height:28px; padding-top:6px; text-align:left; top:0; left:0; padding-left:10px; overflow:hidden; } .ytvideo .yt_ft { font-size:12px; width:100%; bottom:0; left:0; } .ytvideo img { display:block; max-width:100%; border:0; } .ytvideo a:after { content:"\A0\25BA"; position:absolute; width:60px; height:40px; left:0; top:0; right:0; bottom:0; margin:auto; border:0; border-radius:10px; color:white; background:rgba(0,0,0,.6); font-size:24px; padding-top:11px; cursor:pointer; } .ytvideo a:hover:after { background:#CC181E; } .ytvideo .yt_inp { position:absolute; top:100%; left:0; width:100%; text-align:center; padding:.5em .2em; border:0; color:white; background: rgba(0,0,0,.7); } @media(max-device-width:960px){ .ytvideo { margin-bottom:60px; } .ytvideo .yt_inp { padding:1em .2em; } }
CFH Imagefilm
Video will open in a new window
Using the eBay App? Paste link into a browser window:
[isdntekvideo]
.ytvideo * { box-sizing:border-box; } .ytvideo { margin:.5em auto 40px auto; max-width:480px; font-family:arial; text-align:center; position:relative; min-height:120px; background-color:#555; } .ytvideo p { position:absolute; margin:0; color:white; background-color:rgba(0,0,0,.5); } .ytvideo .yt_hd { font-size:16px; width:100%; height:28px; padding-top:6px; text-align:left; top:0; left:0; padding-left:10px; overflow:hidden; } .ytvideo .yt_ft { font-size:12px; width:100%; bottom:0; left:0; } .ytvideo img { display:block; max-width:100%; border:0; } .ytvideo a:after { content:"\A0\25BA"; position:absolute; width:60px; height:40px; left:0; top:0; right:0; bottom:0; margin:auto; border:0; border-radius:10px; color:white; background:rgba(0,0,0,.6); font-size:24px; padding-top:11px; cursor:pointer; } .ytvideo a:hover:after { background:#CC181E; } .ytvideo .yt_inp { position:absolute; top:100%; left:0; width:100%; text-align:center; padding:.5em .2em; border:0; color:white; background: rgba(0,0,0,.7); } @media(max-device-width:960px){ .ytvideo { margin-bottom:60px; } .ytvideo .yt_inp { padding:1em .2em; } }
CFH - Propanregler 2,5bar DR112
Artikelnummer: No. 52112
- Der auf einen Regeldruck von 2,5 Bar festeingestellte Propanregler DR 112, hat eine im Reglerkörper eingebaute Schlauchbruchsicherung, welche im gewerblichen Einsatz verpflichtend ist. Diese Schlauchbruchsicherung stoppt im Falle eines Schlauchbruchs den Gasaustritt um ihre Sicherheit zu gewährleisten. Der Propanregler, reguliert den Flaschendruck auf den für das Arbeitsgerät z.B. Abflammgerät nutzbaren Arbeitsdruck
- Der Propanregler ist geeignet für den Anschluss an 5 KG, 11 KG und 33 KG Gasflaschen
- Der auf 2,5 Bar eingestellte Ausgangsdruck bietet ein optimales Verbrauchs- / Leistungsverhältnis
- Man kann den Regler z.B. an folgende CFH Löt- und Abflammgeräte anschließen: Turbo Handlötgerät GT 2000 CFH- Art. Nr. 52060, Abflammgerät ST 500 CFH Art. Nr. 52074, Abflammgerät ST 1000 CFH Art. Nr. 52078 usw.
- Eingangsanschluss G.5 / Ausgangsanschluss H.6 3/8“ Linksgewinde Durchfluss 6 kg/h gem. EN 16129 mit Flammenrückschlagsicherung
- Der Propanregler DR 112 kann nicht an Gasgeräten mit einem niederen Regeldruck z.B. 30-50 mbar verwendet werden
- DIN DVGW / CE Zeichen
Details:
- mit Schlauchbruch-Sicherung welche im gewerblichen Einsatz Pflicht ist.
- Eingang - G.5 / Ausgang - H.6 3/8" gemäß EN 16129, Durchfluss 6kg/h
- stoppt Gasaustritt bei Schlauchbruch
- Nur im Freien verwenden.
Lieferumfang:
1x Propanregler 2,5bar DR112 von CFH
CFH Hochdruckregler // Propandruckregler 2,5 bar (No. 52112/114) // 1-4 bar (No.52113/115)
Video will open in a new window
Using the eBay App? Paste link into a browser window:
[isdntekvideo]
.ytvideo * { box-sizing:border-box; } .ytvideo { margin:.5em auto 40px auto; max-width:480px; font-family:arial; text-align:center; position:relative; min-height:120px; background-color:#555; } .ytvideo p { position:absolute; margin:0; color:white; background-color:rgba(0,0,0,.5); } .ytvideo .yt_hd { font-size:16px; width:100%; height:28px; padding-top:6px; text-align:left; top:0; left:0; padding-left:10px; overflow:hidden; } .ytvideo .yt_ft { font-size:12px; width:100%; bottom:0; left:0; } .ytvideo img { display:block; max-width:100%; border:0; } .ytvideo a:after { content:"\A0\25BA"; position:absolute; width:60px; height:40px; left:0; top:0; right:0; bottom:0; margin:auto; border:0; border-radius:10px; color:white; background:rgba(0,0,0,.6); font-size:24px; padding-top:11px; cursor:pointer; } .ytvideo a:hover:after { background:#CC181E; } .ytvideo .yt_inp { position:absolute; top:100%; left:0; width:100%; text-align:center; padding:.5em .2em; border:0; color:white; background: rgba(0,0,0,.7); } @media(max-device-width:960px){ .ytvideo { margin-bottom:60px; } .ytvideo .yt_inp { padding:1em .2em; } }
CFH Imagefilm
Video will open in a new window
Using the eBay App? Paste link into a browser window:
[isdntekvideo]
.ytvideo * { box-sizing:border-box; } .ytvideo { margin:.5em auto 40px auto; max-width:480px; font-family:arial; text-align:center; position:relative; min-height:120px; background-color:#555; } .ytvideo p { position:absolute; margin:0; color:white; background-color:rgba(0,0,0,.5); } .ytvideo .yt_hd { font-size:16px; width:100%; height:28px; padding-top:6px; text-align:left; top:0; left:0; padding-left:10px; overflow:hidden; } .ytvideo .yt_ft { font-size:12px; width:100%; bottom:0; left:0; } .ytvideo img { display:block; max-width:100%; border:0; } .ytvideo a:after { content:"\A0\25BA"; position:absolute; width:60px; height:40px; left:0; top:0; right:0; bottom:0; margin:auto; border:0; border-radius:10px; color:white; background:rgba(0,0,0,.6); font-size:24px; padding-top:11px; cursor:pointer; } .ytvideo a:hover:after { background:#CC181E; } .ytvideo .yt_inp { position:absolute; top:100%; left:0; width:100%; text-align:center; padding:.5em .2em; border:0; color:white; background: rgba(0,0,0,.7); } @media(max-device-width:960px){ .ytvideo { margin-bottom:60px; } .ytvideo .yt_inp { padding:1em .2em; } }
CFH - Schlauchbruchsicherung SB118
Artikelnummer: No. 52120
- Die Schlauchbruchsicherung SB 118 stoppt bei einem Schlauchbruch /-abriss das weitere Ausströmen von Gas umso Ihre Sicherheit zu gewährleisten. Bei gewerblichem Einsatz von Gasgeräten ist die Verwendung einer Schlauchbruchsicherung verpflichtend
- Die Schlauchbruchsicherung kann direkt am Druckregler montiert werden z.B. am Propanregler DR 113 CFH Art. Nr. 52113, am Propanregler DR 114 CFH Art. Nr. 52114 oder an dem Propanregler DR 115 CFH Art. Nr. 52115
- Eingangsanschluss G.25 / Ausgangsanschluss H.6 3/8“ Linksgewinde Durchfluss 6-8,5 kg/h gem. EN 16129
- DIN DVGW
Details:
- wird zwischen den Handgriff des Gerätes und Schlauch montiert
- Eingang - G.25 / Ausgang - H.6 3/8“ gemäß EN 16129
- verhindert das Verdrehen des Schlauches
Lieferumfang:
1x Schlauchbruchsicherung SB118 von CFH
